ALRJ Series Vacuum Mixing Emulsifier

01
01

Product detail

sample

product features

product features

01

product description

This machine is suitable for emulsifying cream or cosmetic product in pharmaceutical, cosmetics, foodstuff and chemical industry.

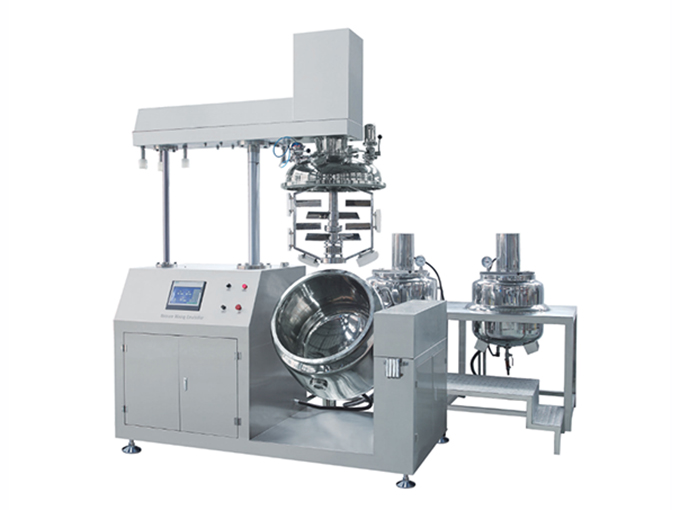

This machine is main consist of emulsified tank, tank to storage oil based material, tank to storage water based material, vacuum system, hydraulic system, and electric controller. This equipment has following features: easy operation, compact structure, stable performance, good homogenization effect, high production benefit, convenient cleaning and maintenance, high automatic control.



Work Principle

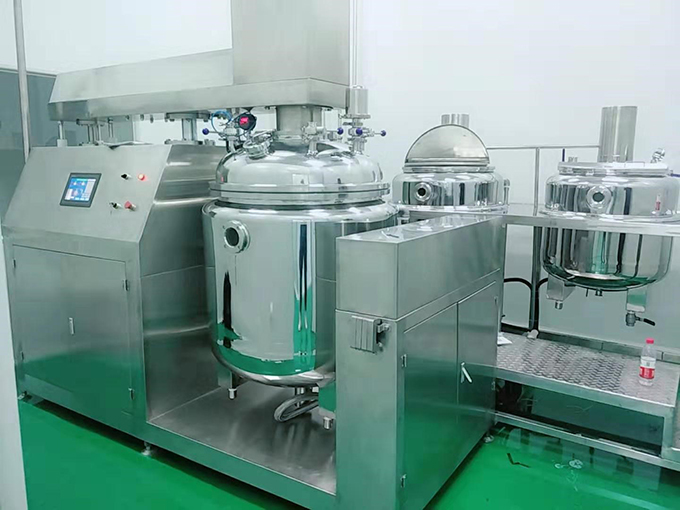

Including main emulsifying pot, water pot ,oil pot and work frame。
Usually the oil pot is used for dissolving some solid that the product can just only be dissolved into oil, then the dissolved solvent will be sucked into the emulsify pot by soft pipes.
The function of water pot is the same to the oil pot.
emulsify pot is used for emulsifying the products that suck from the oil pot and water pot.


Feature:

1. All pipelines and parameter are controlled automatically. And the electric appliance which are imported from foreign country, like Siemens, Schneider and so on.

2. Emulsifying tank is with CIP cleaning system, it make the cleaning to be easy and effective.

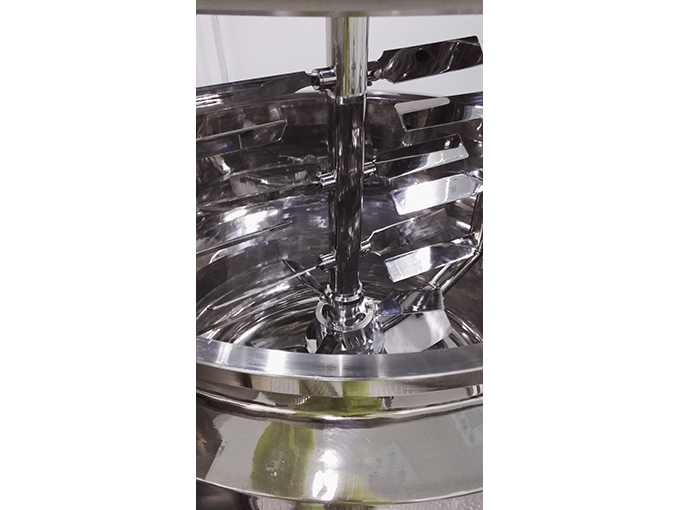

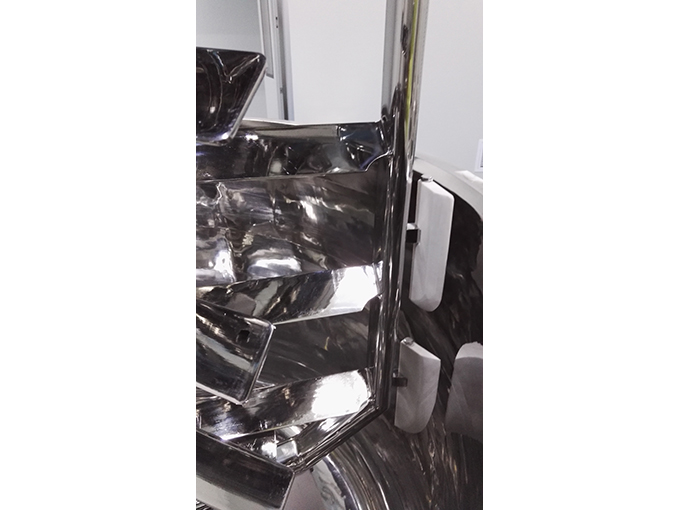

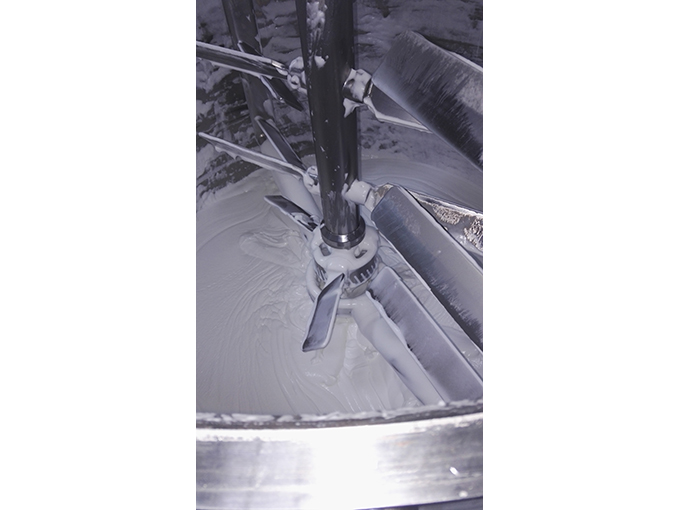

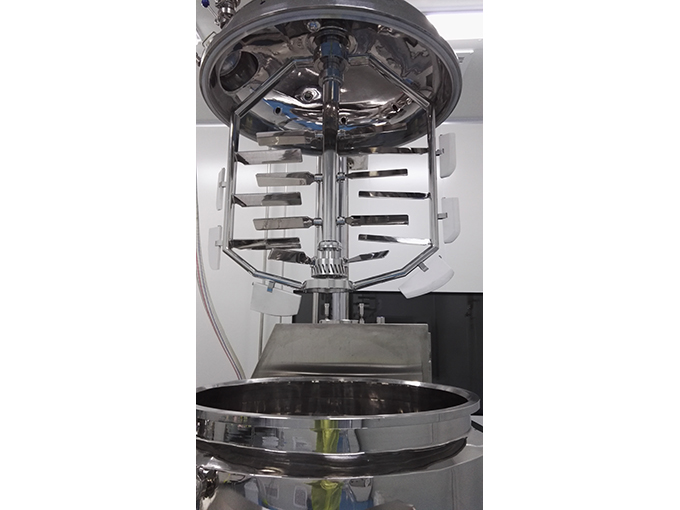

3. Emulsifying tank adopts tertiary agitating system, and during the emulsification, the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing ,but also can avoid the unnecessary pollution.

4. The homogenizer adopts the most advanced technology, it can get a ideal emulsifying effect. The speed of high emulsification is 0-3500r/min, and the speed of low mixing is 0-65r/min.

5. When the upper cover of the emulsifying tank has risen, the stirring device could not work in order to injure the operator.

6. The low speed agitator uses the helical gear and with the unique design and the high accuracy processing, it can withstand torque and prolong the using life.

7. Use a new type mixing axes, it is easy to disassemble. When replace the damaged part just need to remove the screw. The sealing material is PTFE and it gets the international pharmaceutical and foodstuff standard.

8. The high speed emulsification device adopts the method of adjustment balance calibration of mobile and stable in order to guarantee its remarkable emulsified effect and prolong the using life.

9. It adopts energy conservation pipeline when machine heated by electric, so it can prevent thermal from divulging and heated quickly. This equipment is with pressure safety device, when overpressure it can mediate the pressure automatically. All the jackets are equipped with glass sight so that is easy for observing the liquid position.



02

Technical parameters

Model Effective Capacity Emulsify Agitator Dimensions Total Power(kw)
kw r/min kw r/min Length width weight Max H
ALRJ-20 20 2.2 0-3500 0.37 0-40 1800 1600 1850 2700 5
ALRJ-50 50 3 0-3500 0.75 0-40 2700 2000 2015 2700 7
ALRJ-100 100 3 0-3500 1.5 0-40 2120 2120 2200 3000 10

ALRJ-150

150 4 0-3500 1.5 0-40 3110 2120 2200 3100 11
ALRJ-200 200 5.5 0-3500 1.5 0-40 3150 2200 2200 3100 12
ALRJ-350 350 7.5 0-3500 2.2 0-40 3650 2650 2550 3600 17
ALRJ-500 500 7.5 0-3500 2.2 0-40 3970 2800 2700 3950 19
ALRJ-750 750 11 0-3500 4 0-40 3780 3200 3050 4380 24
ALRJ-1000 1000 15 0-3500 4 0-40 3900 3400 3150 4550 29
ALRJ-1500 1500 18.5 0-3500 7.5 0-40 4000 4100 3750 5650 42
ALRJ-2000 2000 22 0-3500 7.5 0-40 4850 4300 3600 No lift 46
