product description

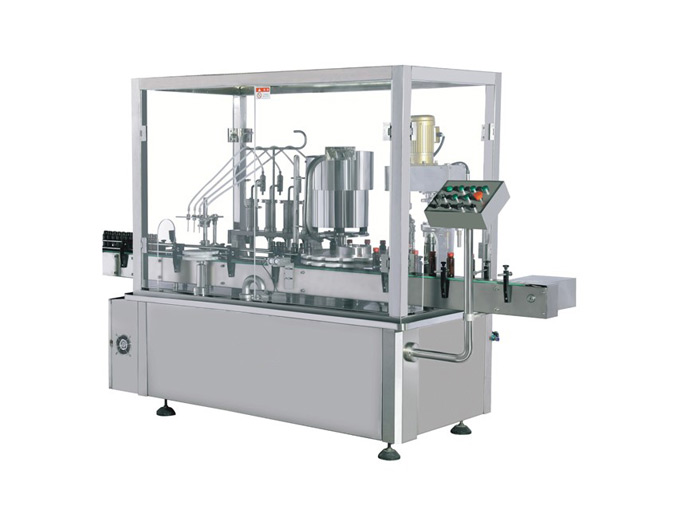

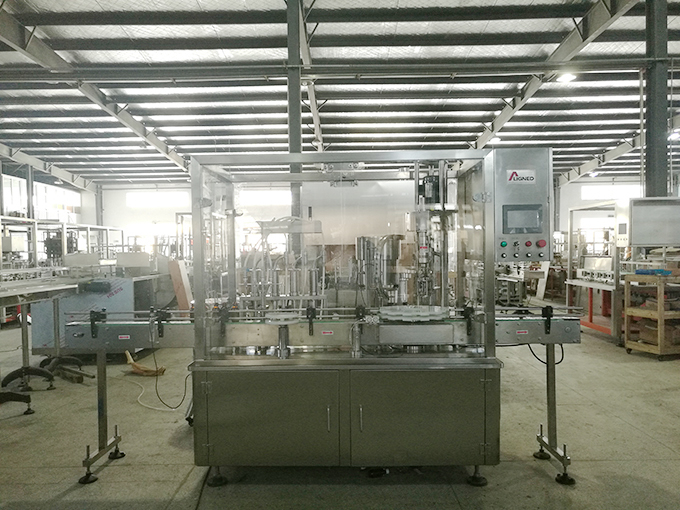

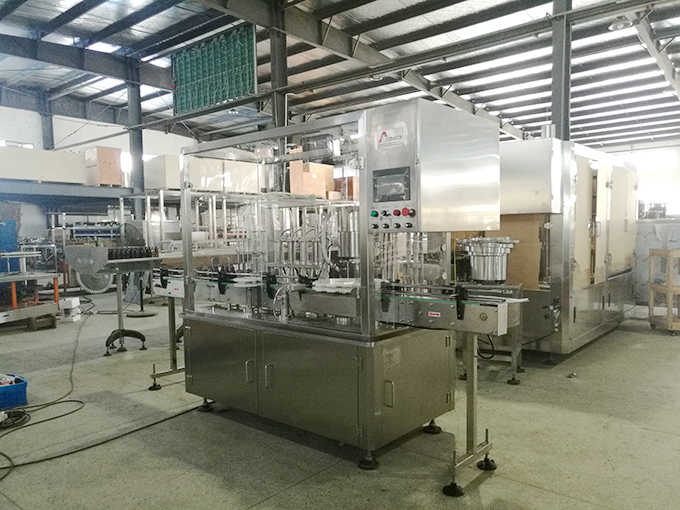

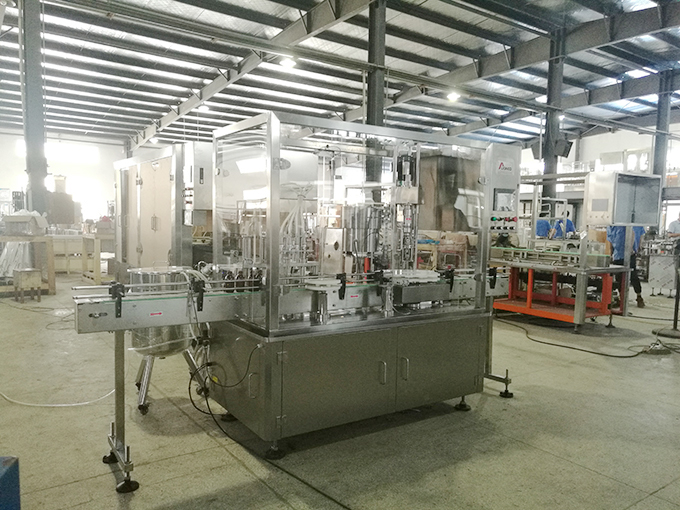

Automatic Filling and Capping monobloc is
customized for bottle liquid filling and plastic screw cap capping (alternative
alum. seaming). The machine is composed by a wide in-feed conveyor, SS316L
volumetric piston pump with servo system, track top-bottom filling nozzles,

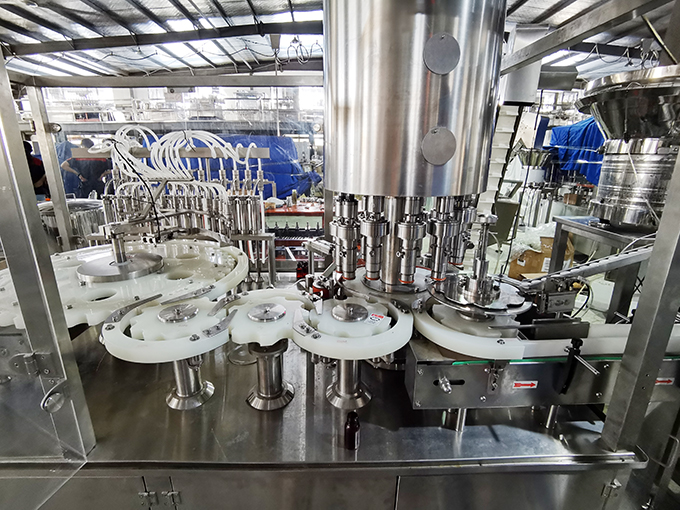

liquid buffer tank, bottle index wheel sets, rotary turret, capping assembly
etc.
Features
1. The machine adopt SS316L Piston Pump, high filling accuracy
2. Index wheel overload protection installed
3. Safety protection cover, stop machine when you open door
4. Automatic reject cap remains on capper head
5. Monobloc design for save space and labor costs
6. Liquid buffer tank for store liquid
Technical parameters
Model |
ALFC8/2 |
ALFC4/1 |
Filling volume |
20~1000ml |
|
Filling pump range |
20-100ml \50-250ml\100-500ml\200ml-1000ml |
|
Cap type |
Alternative Screw on cap, alum. ROPP cap |
|
Capacity |
3600~5000bph |
2400~3000bph |
Filling accuracy |
≤±1％ |
|
Capping accuracy |
≥99％ |
|
Power supply |
220V 50/60Hz |
|
Power |
≤2.2kw |
≤1.2kw |
Air pressure |
0.4~0.6MPa |
|
Weight |
1000kg |
800kg |
Size |
2200×1200×1600 |
2000×1200×1600 |

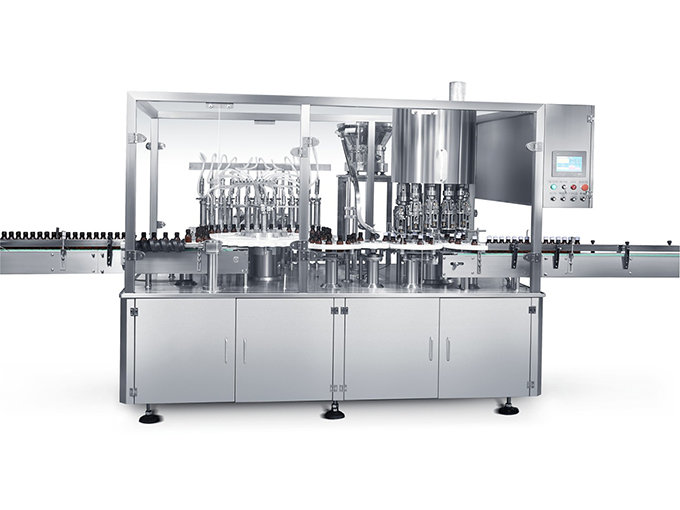

Associate machine
