Feature:

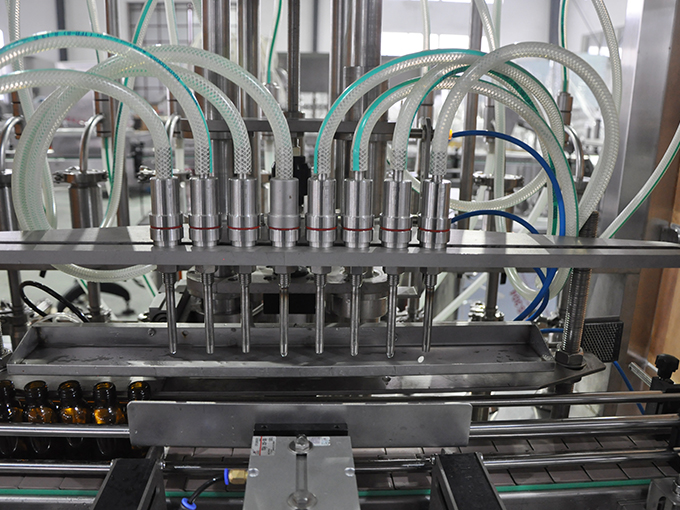

1. Bottom-up fill control, prevent the occurrence of foaming.
2. Different bottle index device e.g. worm conveyor, pneumatic finger, index wheel to fit to different kinds of bottles.

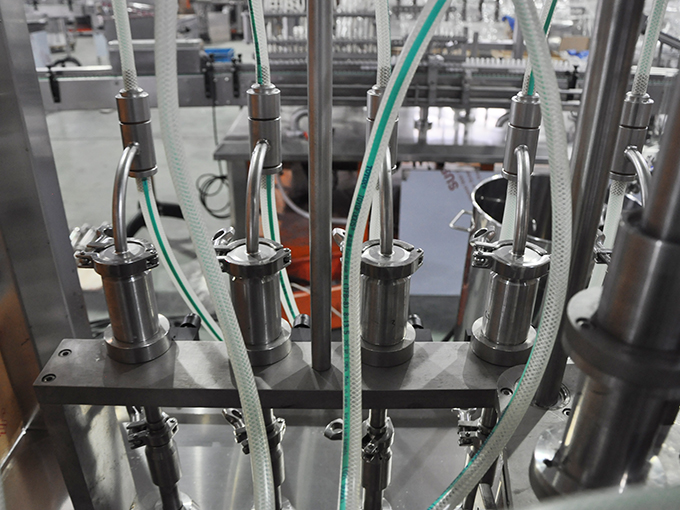

3. SS316 piston pump drive by servo motor system, stable and precision.
4. Set the filling volume in HMI, easy changeover size.
5. No fill when bottles backup downstream and less bottles load upstream.
6. No fill while nozzles misaligning inside of bottle
7. No fill with lower level of less product in buffer tank, which mounted level sensor.
8. Batch bottle counter records number of finish bottle output.
Technical parameters
| Model |
ALF-4 |
ALF-8 |
ALF-12 |
ALF-16 |
ALF-20 |
ALF-24 |
Filing Nozzles |
4 |
8 |
12 |
16 |
20 |
24 |
Filing Range |
20-500ml |
|||||
Idea Filing Range |
|
5-20ml |
20-60ml |
60-150ml |
150-250ml |
250-500ml |
Filing Speed |
40-60 |
60-80 |
70-100 |
90-120 |
120-160 |
160-180 |
|
Filing Precision |
≤±1% |
|||||
|
Air Pressure Range |
0.4-0.6Mpa |
|||||
|
Power Supply |
220V380V 50/60Hz |
|||||
|
Power Consumption |
0.75KW |
0.75KW |
1.2KW |
2.2KW |
2.2KW |
2.2KW |
|
Single Machine Noise |
≤50db |
|||||
|
Net Weight |
500KG |
800KG |
1000KG |
1300KG |
1500KG |
1700KG |
|
Overall Dimensions |
1300×1000×1800 |
1600×1000×1800 |
1900×1000×1800 |
2300×1000×1800 |
2300×1000×1800 |
2600×1000×1800 |
