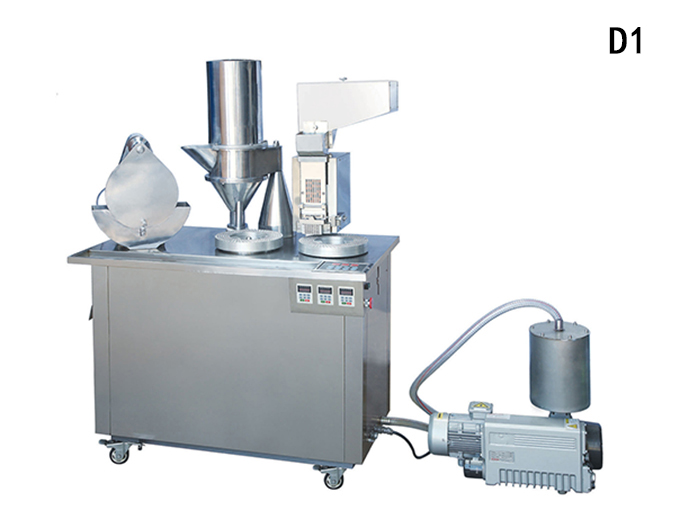

CGN-208D Semi-Automatic Capsule Filling Machine

Susan

+86 13967712128

E-MAIL

Email:aligned@aligned.com.cn

Product detail

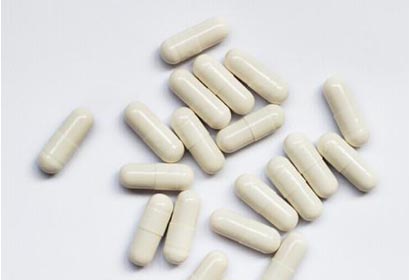

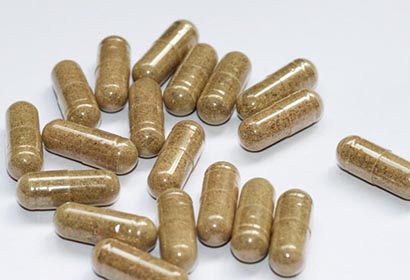

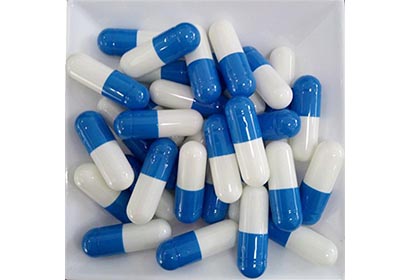

sample

product features

product description

The semi-automatic capsule filling machine suitable for filling powder and pellet material in pharmacy and health food industry. it can meet laboratory require and low budget require.

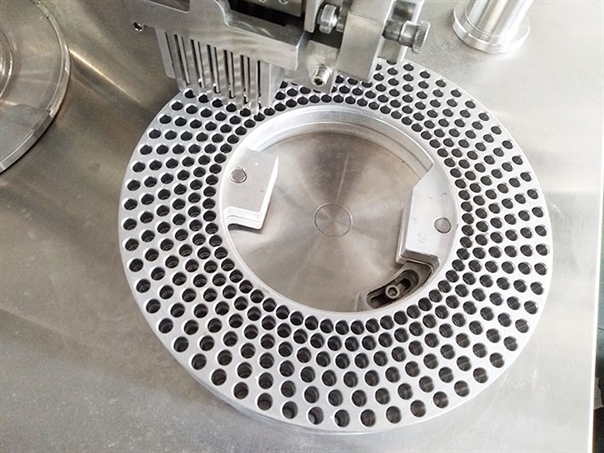

This machine has independent empty capsule feeding station, powder feeding station and capsule closing station. The medium process needs to be processed by hand. The machine adopts variable speed control, the operation is very easy and simple, and the powder material feed correctly. The machine body and working table adopt S.S. material; meet the sanitary requirement of pharmacy.

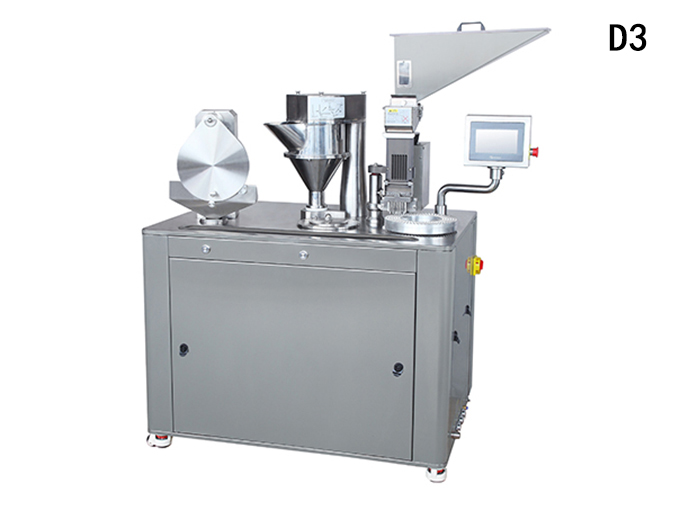

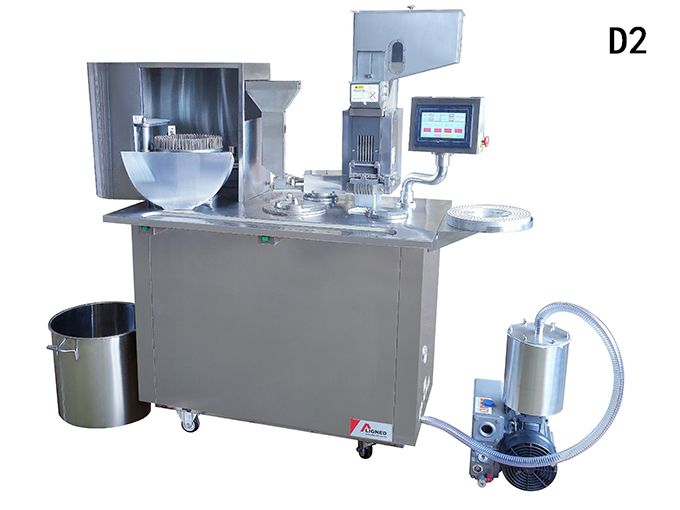

So far we have developed three generations of equipment, from button control to touch screen control, vertical to horizontal closed capsule, the internal structure is more concise

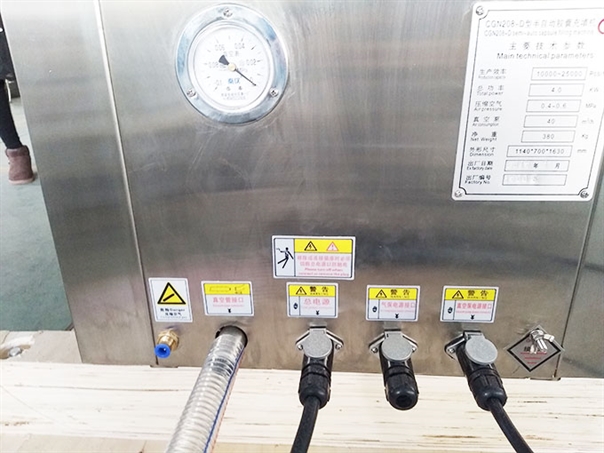

Technical parameters

The Time Of Replacing Debugging Mold	5-8mins(for beginners)

Production Rate	1-2.5 ten thousand/hour(depending on capsules No.)

Applicable Capsules	000#,00L#,00#,0#,1#,2#,3#,4#,Mechanism standard capsules

Filling Material	Without a sticky and wet powder,small granules

Total Power	4.0kw

Air Pressure	0.03m^3/min 0.6Mpa

Vacuum Pump	Pump capacity is 40m^3/h

Machine Dimension	11407001630mm

Packing Dimension	16508001750mm

Net Weight	350kg

Gross Weight	380kg
