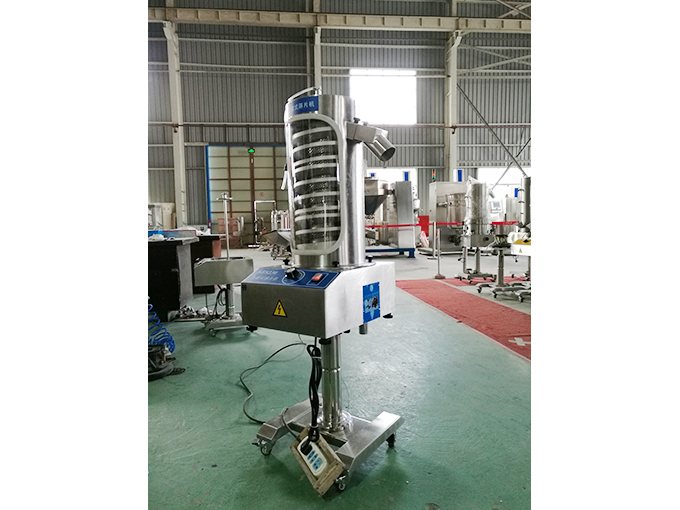

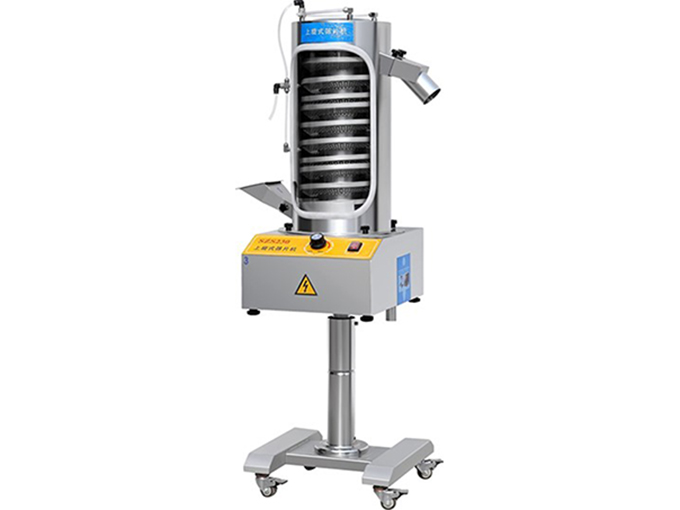

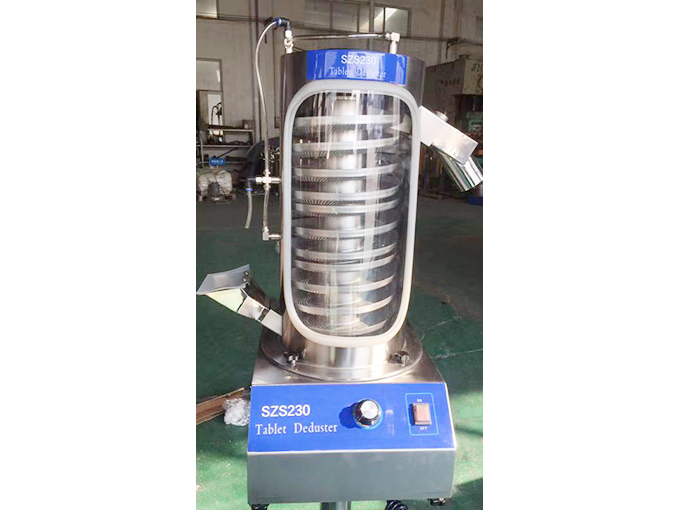

Model SZS230 Uphill Deduster also employed many new designs, to allow and to ensure a better and safer production, This Uphill Deduster is able to act as both elevating and dedusting machine, which made it a usual combination with other tablet-compressing machine and metal detection machine, and also made it extremely applicable in the field of pharmacy, chemical engineering, electronics, and food.
Features:

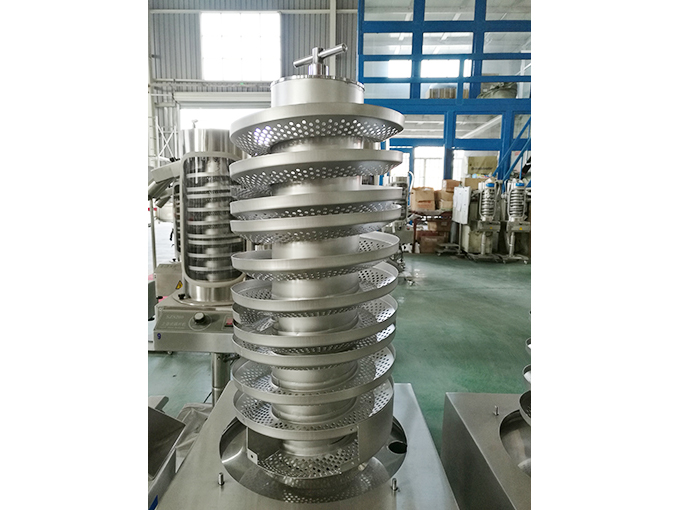

Its advantage includes long dedusting path, automatic tablet polish on all sides, and high quality dedusting without damage to the tablet itself. In addition, it can act as a delivering device for any shape of tablet that needs to be dedusted. Best of all, it correspond with the GMP standard. The machine body, cover adopts modular design, easy to adjust export height, the quick assembling connection structure, make the machine more efficient disassembly, installation, also cleaning without dead angle of entrance and exit. The machine can do a 360 degree circumference adjustment, convenient production, save space outstanding production efficiency, can satisfy Dia. 3-35mm shape tablets in the large scale production, the new driving device design, so as to make the machine run more smoothly, low noise.
02
Technical parameters
|
Model |
SZS230 |
|
Max output capacity(t/h) |
800000 (Ф6mm Tablet) |
|
Dedust route (m) |
6 |
|
Max lift height(mm) |
1220 |
|
Max tablet Dia(mm) |
Ф25 |
|
Power supply |
1P 220/110V 50-60Hz |
|
Outer dimension(mm) |
550×550×(H:1350-1500) |
|
Weight(kg) |
70 |
|
Compressed air |
0.1m3/min 0.05Mpa |
|
Vacuum |
2.7m3/min -001Mpa |
