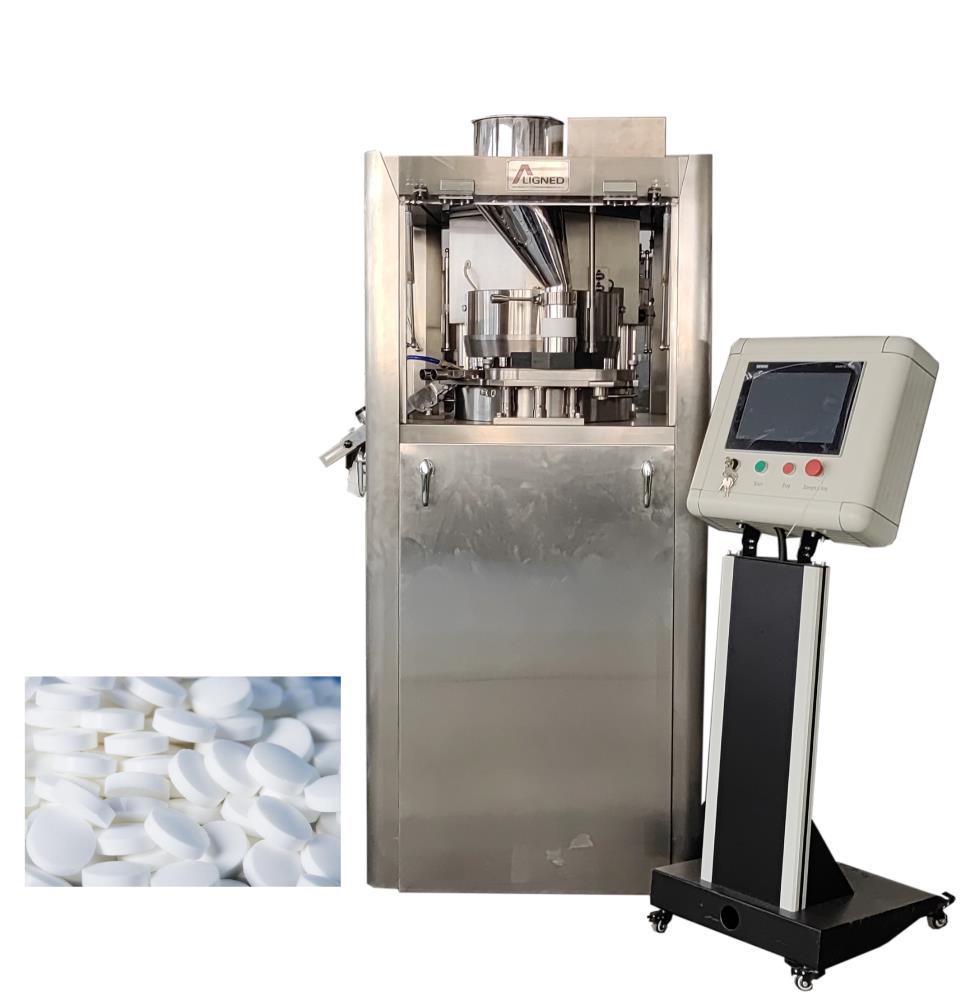

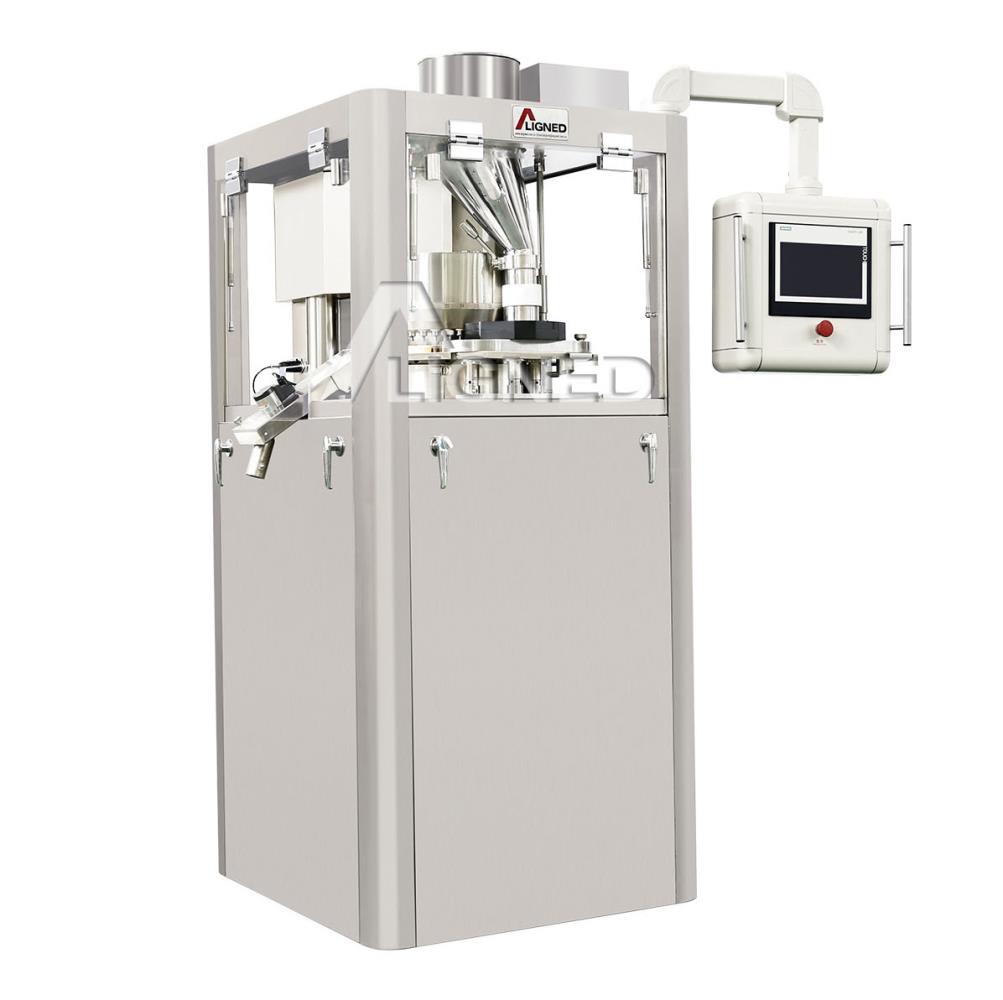

GZPK Series Automatic High-Speed Rotary Tablet Press

01
01

Product detail

sample

product features

product features

01

product description

Rotary tablet press fully complies with GMP pharmaceutical requirements.It is a continuous automatic rotary tablet press that compresses powder and granular raw materials into tablets in pharmaceutical, chemical, electronic, food, laboratory and other industries.The main working process is divided into: filling; tableting;outputting.The Filling and tableting with adjustment control mechanism.

Features:

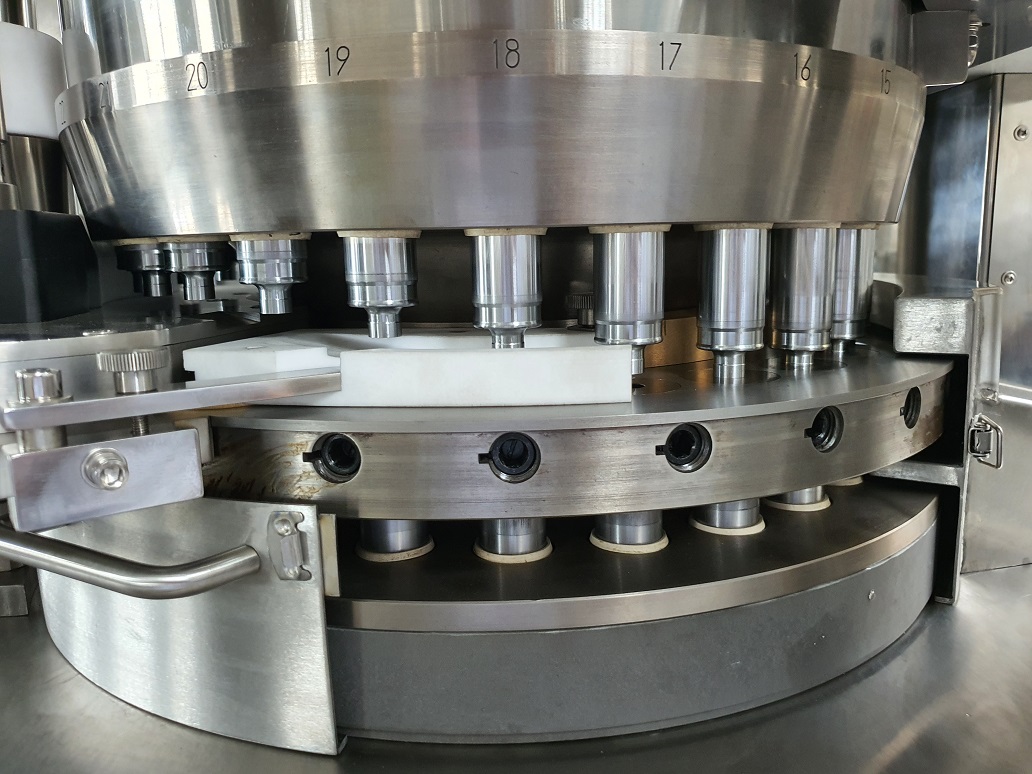

1.The equipment adopts a high-precision turntable, which can easily disassemble the upper, middle and lower molds by hand. The upper and lower molds are equipped with sealing rings to prevent oil leakage, and special tools are equipped to replace the sealing rings, which reduces the replacement time.

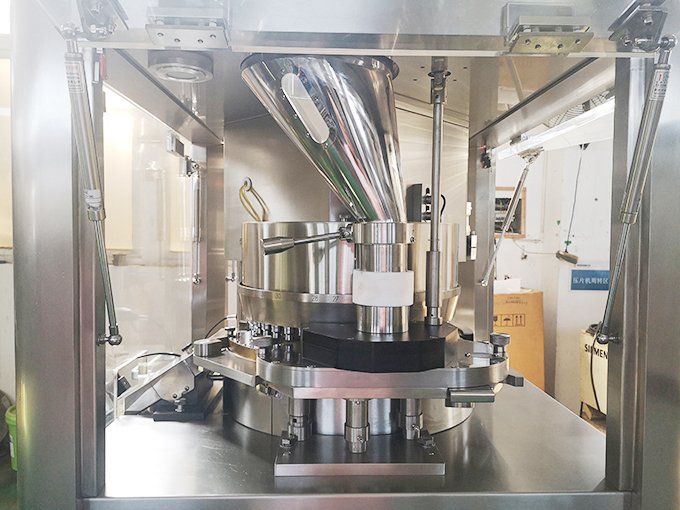

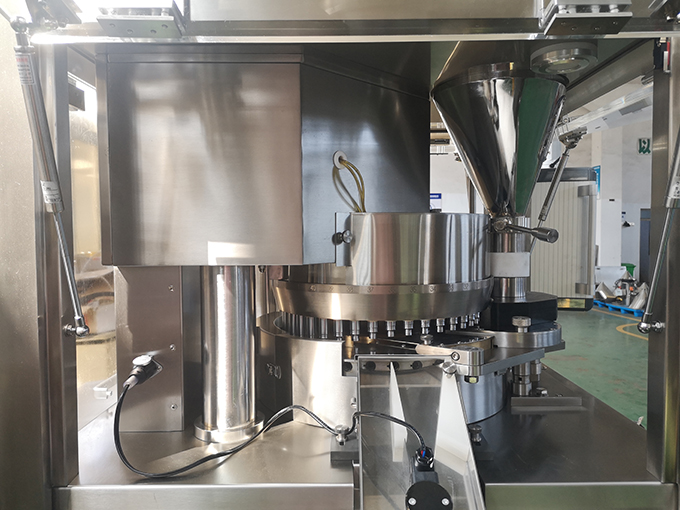

2.The forced feeder is designed with a double-layer impeller, which drives the double-layer impeller from bottom to top, avoiding material blockage.
3.The powder scraping device has built-in multiple springs, which can scrape powder more thoroughly.
4.Automatic control of slice weight via touchscreen.
5.Pressure sensors detect each die pressure.
6.Optional single or batch reject tablets.




02

Technical parameters

Model GZPK

26 32 40

No. Of Station

26 32 40

Capacity (tablets/h)

Max.

160000 210000 260000



Min.

30000 30000 30000




Rotation Speed(rpm)

Max.

102 105 105


Min.

11 11 11



Max.Tablet Diameter

Ф25

Ф25

Ф25

Main Pressure

80KN

80KN

100KN

Pre-Pressure

20KN

20KN

20KN

Max. Filling Depth

20mm

16mm

16mm

Dia. Of Die (mm)

38.1

30.16

24.01

Length Of Punch

133.6mm

133.6mm

133.6mm

Main Motor Power

11KW

7.5KW

7.5KW

Dimension

930(+438)*850(+438)* 1945mm
