product description

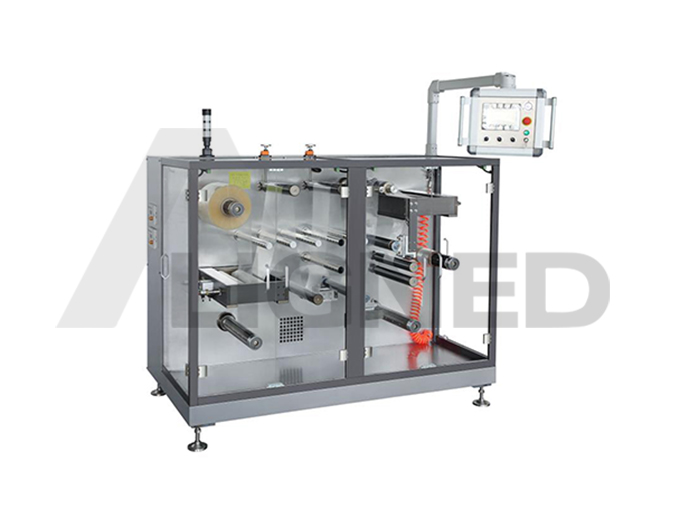

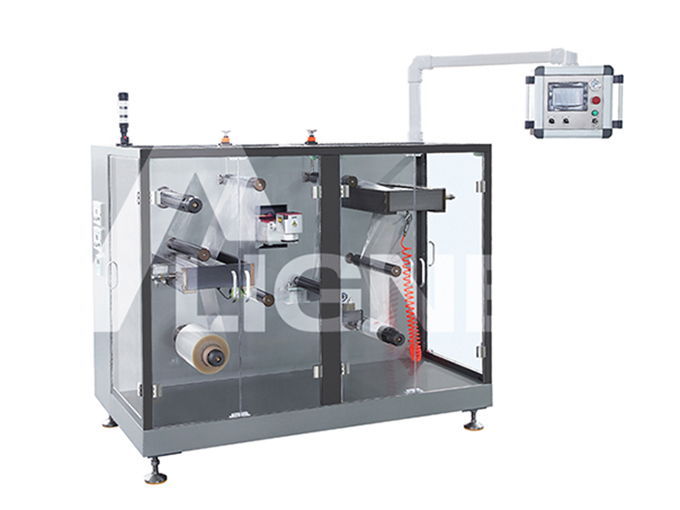

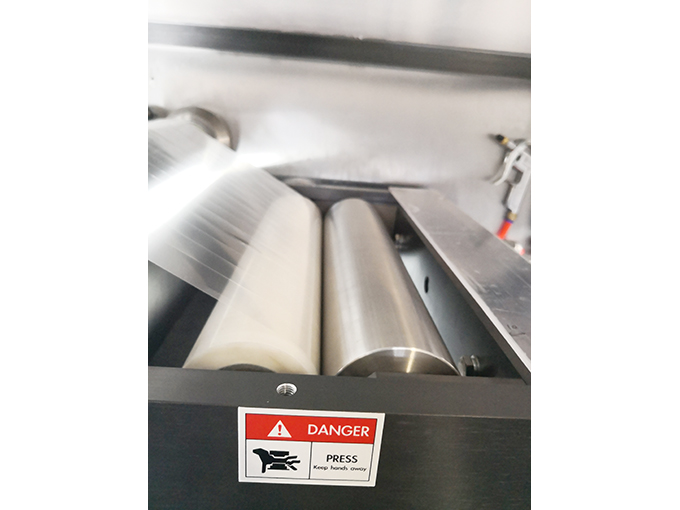

KGF-380 Automatic Oral thin film Slitting & Drying machine automatic stand dryer for intermediate process equipment, peeling film from polyester film carrier, film drying keeps uniform, slitting process and rewinding process to ensure it is properly adapted to the next packaging process.
Working Principle
The working principle of the machine is evenly coated a layer of liquid material on the surface of the reel base roll. The solvent (moisture) is rapidly evaporated and dried through drying channel. And winding up after cooling (or composite with another material). Then, get the final products of the film (composite film).
02
Technical parameters
|
Project |
Parameter |
|
Production Capacity |
Standard 0.002m-5m/min |
|
Finished Film Width |
110-190 mm (Standard 380mm ) |
|
Raw Material Width |
≤380mm |
|
Total Power |
Three-phase five lines 220V 50/60Hz 1.5Kw |
|
Air Filter Efficiency |
99.95% |
|
Air Pump Volume Flow |
≥0.40 m3/min |
|
Packing Material |
Slitting composite film thickness (usually) 0.12mm |
|
Overall Dimensions ( L*W*H ) |
1930*1400*1950mm |
|
Dividing material specifications |
|
|
Roll Type Packing Material |
Material Roll outer diameter |
|
Thickness |
0.10-0.12 |
|
Roll Inner Diameter |
φ76-78mm |
|
Material Roll Outer Diameter |
φ350mm |
